RM630.00

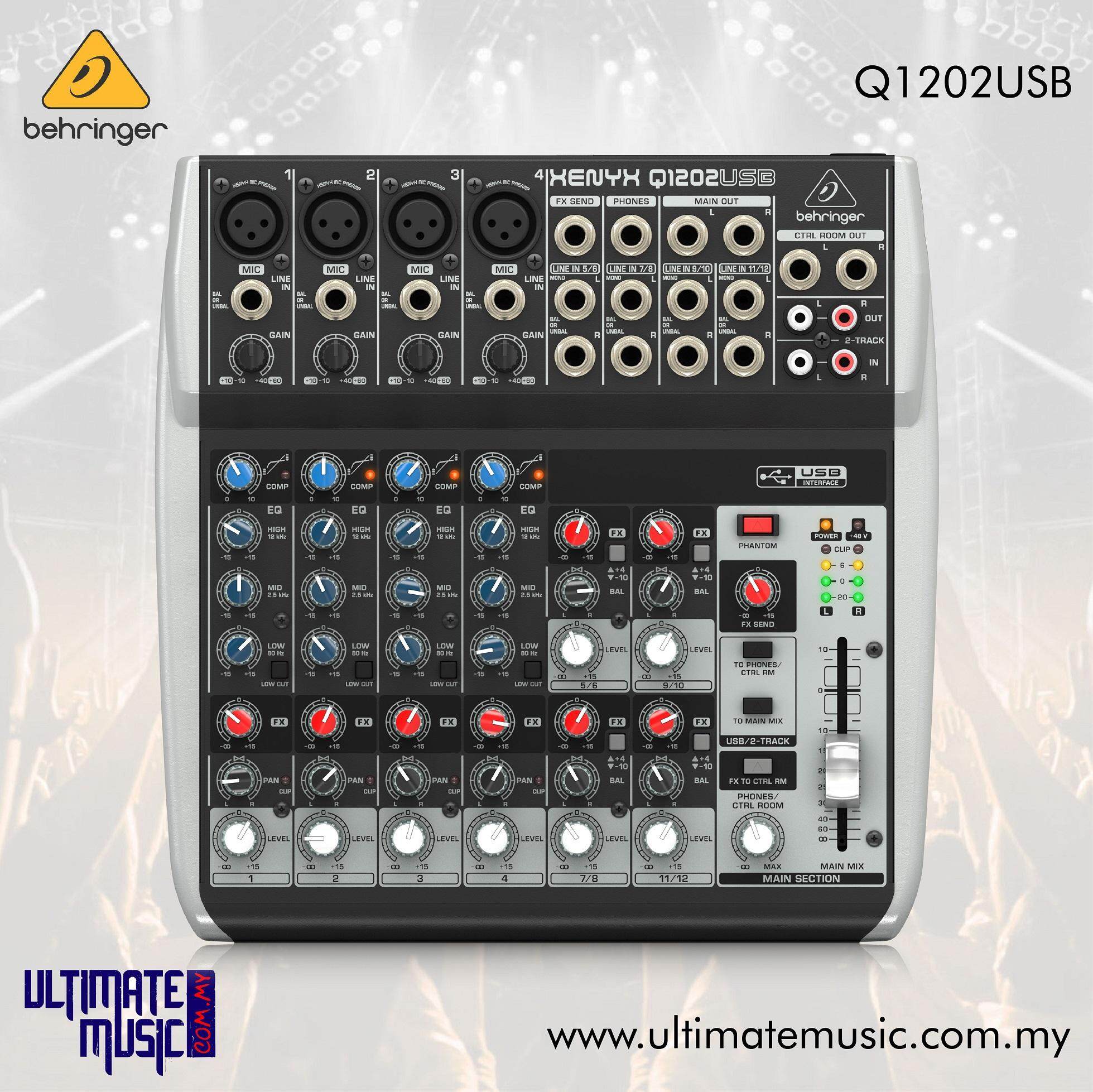

BEHRINGER XENYX Q1202USB Premium 12-Input 2-Bus Mixer with XENYX Mic Preamps & Compressors, British EQs and USB/Audio Interface
Price RM630.00
Product SKU BEHXENYXQ1202USB
Brand Behringer
Size (L x W x H) 30 cm x 25 cm x 6 cm
Availability Out Of Stock
Quantity
Description
Highlight
  • Premium ultra-low noise, high headroom analog mixer
  • 4 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
  • Studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
  • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
  • Neo-classic "British" 3-band EQs for warm and musical sound
  • 1 post fader FX send per channel for external FX devices

Behringer Q1202USB Specs

Basic Specifications

Total # Of Inputs 12

Channels 4 mono

4 stereo

USB Audio Type B connector

2 channels in / 2 channels out

48 kHz sample rate

Busses Stereo mix buss, mono FX buss

Microphone Inputs

Type XLR connector, balanced, discrete input circuit

Mic Preamps 4 x XENYX preamp

Equivalent Input Noise -134 dB / -136 dB A-weighted @ 0Ω source resistance

-131 dB / -133 dB A-weighted @ 50Ω source resistance

-129 dB / -131 dB A-weighted @ 150Ω source resistance

Frequency Response < 10 Hz to 150 kHz (-1 dB)

< 10 Hz to 200 kHz (-3 dB)

Gain Range +10 to +60 dB

Maximum Input Level +12 dBu @ +10 dB Gain

Impedance 1.9kΩ

Signal-to-Noise Ratio 110 dB A-weighted (0 dBu In @ +22 dB gain)

THD + N 0.005% / 0.004% A-weighted

Phantom Power Supply +48V

Line Inputs

Type 1/4" TRS connector, balanced

Impedance 20kΩ, 10kΩ unbalanced

Gain Range -10 to +40 dB

Maximum Input Level +22 dBu @ 0 dB gain

Stereo Inputs

Type Dual 1/4" TRS connectors, balanced

Impedance 20kΩ, 10kΩ unbalanced

Gain Range -20 to +20 dB

Maximum Input Level +22 dBu

Tape/Media

Type Dual RCA connectors

Input Impedance 18kΩ

Maximum Input Level +22 dBu

Output Impedance 1kΩ

Maximum Output Level +22 dBu

Equalizer

EQ Controls 3-band EQ on mono channels:

Low: ±15 dB @ 80 Hz

Mid: ±15 dB @ 2.5 kHz

High: ±15 dB @ 12 kHz

AUX Section

Aux Sends 1/4" TRS connector, balanced

Impedance: 120Ω

Maximum output level: +22 dBu

Main Outputs

Type 1/4" TRS connector, balanced

Impedance 120Ω balanced

Maximum Output Level +22 dBu

Control Room Outputs

Type 1/4" TRS connector, balanced

Impedance approx. 120Ω

Maximum Output Level +22 dBu

Headphone Output

Type 1/4" TRS stereo connector, unbalanced

Maximum Output Level +21 dBu / 150Ω (+25 dBm)

Performance

Compressor Independent compressor on each mono channel

Metering 4-LED per side

Faders 1 x 60 mm master fader

Noise Main mix @ -∞, channel fader @ -∞

-106 dB / -109 dB A-weighted



Main mix @ 0 dB, channel fader @ -∞

-93 dB / -96 dB A-weighted



Main mix @ 0 dB, channel fader @ 0 dB

-84 dB / -87 dB A-weighted

General

Power Consumption 20W

Dimensions (W x D x H) 9.8 x 9.8 x 2.0" (250 x 248 x 50 mm)

Weight 3.3 lb (1.5 kg)
